Big Creek, Florence Lake Dam - View of open seam on extrados surface of Arch #36 at elevation 7308 and at junction with spillway section. this seam is directly opposite spurt noted on downstream side during intrados inspection.
photCL SCE 02 - 22170
Big Creek, Florence Lake Dam
Visual Materials

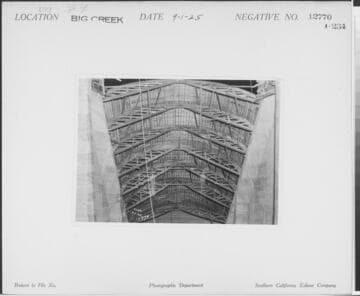

Big Creek, Florence Lake Dam - [method of wood forming on downstream side of arch (intrados)].
photCL SCE 02 - 12770
Big Creek, Florence Lake Dam - Close-up
Visual Materials
Big Creek, Florence Lake Dam - Close-up of a portion of open seam on Arch 9 at elevation 7296 and 10' west of center line showing 3/8" vertical Tie steel exposed after chipping and cleaning out seam.
photCL SCE 02 - 22167
Big Creek, Florence Lake Dam
Visual Materials
Big Creek, Florence Lake Dam - View of open seam on Arch #36 at elevation 7308 after chipping out and ready for sealing with stiff grout.
photCL SCE 02 - 22171
Big Creek, Florence Lake Dam
Visual Materials

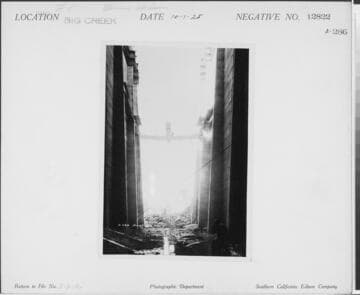

Big Creek, Florence Lake Dam - Looking downstream, from between buttresses, and underside of intrados of arch in river section.
photCL SCE 02 - 12822
Big Creek, Florence Lake Dam - Close-up
Visual Materials

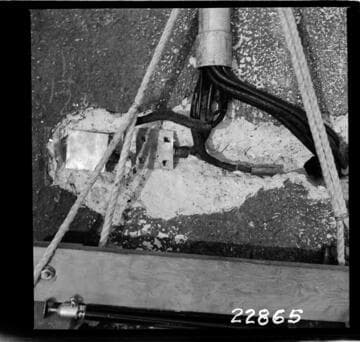

Big Creek, Florence Lake Dam - Close-up of thermometer resistances in place on upstream surface of Arch #6 prior to grouting in.
photCL SCE 02 - 22865
